RXL-2552 Adjustable Rail Four-Post Racks
Colors: White / Black / Gray
Height: 7' (45U) / 8' (52U)
Depth: 32" / 40" / 42"
Style: #12-24 Tapped / 3/8" Square
Height: 7' (45U) / 8' (52U)
Depth: 32" / 40" / 42"
Style: #12-24 Tapped / 3/8" Square
General Details

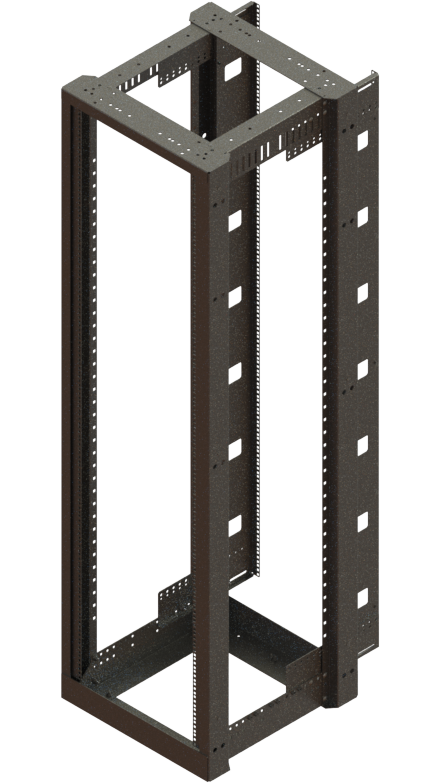

Adjustable Rail Four-Post Racks
The Adjustable Rail 4Post Rack supports the standard 19” EIA width equipment, commonly used in IT data centers and telecommunication rooms. Rack consists of 2 fixed frames with depth brackets. Rails are easily mounted and adjusts to a variety of equipment’s.
• Easy to assembly, adjust depth as necessary.
• Rack Unit markings on equipment rails
• Choice of powder coated finish
• Includes Grounding Terminal Block
• Load Capacity of 2000lbs
Part Numbers
| Part Number | Description |
|---|---|
| RXL-2552-BK7032T | Adjustable Rail Four Post Rack, 7′ H (45U), 15″-32″ Depth, #12-24 Tapped Rails |
| RXL-2552-BK7032S | Adjustable Rail Four Post Rack, 7′ H (45U), 15″-32″ Depth, 3/8″ Square Punched Rails |
| RXL-2552-BK8032T | Adjustable Rail Four Post Rack, 8′ H (52U), 15″-32″ Depth, #12-24 Tapped Rails |
| RXL-2552-BK8032S | Adjustable Rail Four Post Rack, 8′ H (52U), 15″-32″ Depth, 3/8″ Square Punched Rails |
See Data Sheet for details.
