RXL-2410 Adjustable Four Post Rack
Colors: White / Black / Gray
Height: 7' (45U) / 8' (52U)
Depth: 28" / 35" / 42"
Style: #12-24 Tapped / 3/8" Square
Height: 7' (45U) / 8' (52U)
Depth: 28" / 35" / 42"
Style: #12-24 Tapped / 3/8" Square
General Details

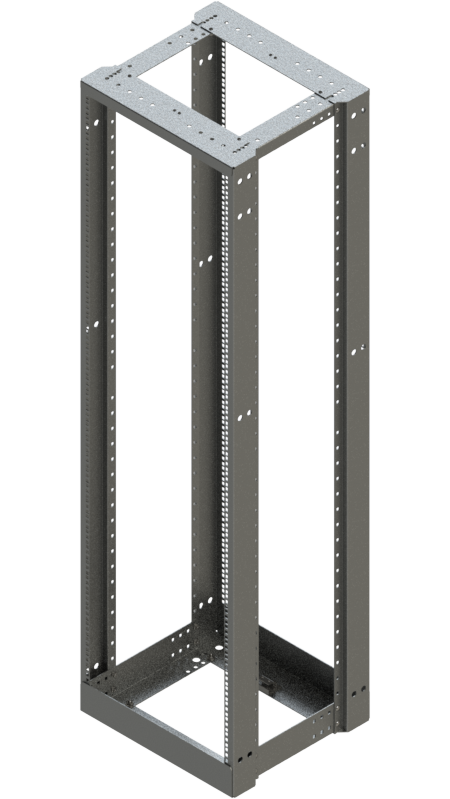

Adjustable Four Post Rack
The Adjustable 4Post Rack supports the standard 19” EIA width equipment, commonly used in IT data centers and telecommunication rooms. Easy to assembly, Attach four depth brackets to welded rails, adjust depth as necessary.
• 19 inches wide by 7 feet tall (45U)
• Adjustable depth
• Rack Unit markings on equipment rails
• Choice of powder coated finish
• Includes a Two Mounting Hole Ground Terminal Block
• Load Capacity of 2000lbs
Part Numbers
| Part Number | Description |
|---|---|
| RXL-2410-BK7035T | Adjustable Four Post Rack, 7′ H (45U), 29″-35″ Depth, #12-24 Tapped Rails |
| RXL-2410-BK7035S | Adjustable Four Post Rack, 7′ H (45U), 29″-35″ Depth, 3/8″ Square Punched Rails |
| RXL-2410-BK8035T | Adjustable Four Post Rack, 8′ H (52U), 29″-35″ Depth, #12-24 Tapped Rails |
| RXL-2410-BK8035S | Adjustable Four Post Rack, 8′ H (52U), 29″-35″ Depth, 3/8″ Square Punched Rails |
See Data Sheet for details.
