RXL-1052 TELCO Style Cable Runway
Colors: White / Black
Width: 6" / 12" / 18" / 24"
Width: 6" / 12" / 18" / 24"
General Details

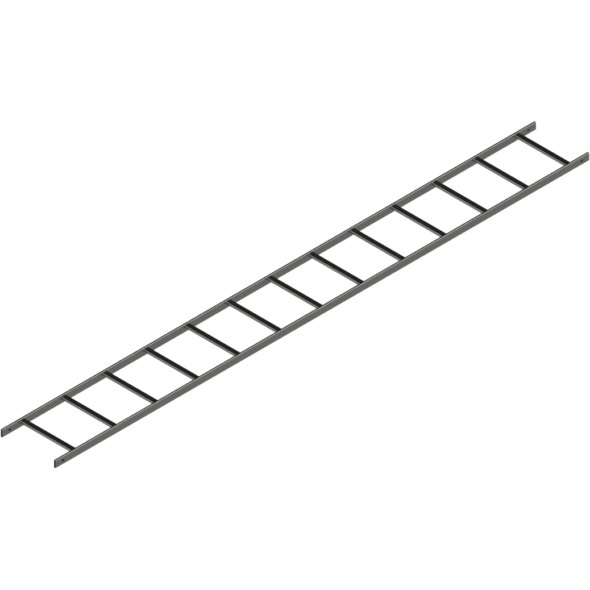

TELCO Style Cable Runway
Telco Style Cable Runway provides a solution to cable pathway routes. Fully RoHS 2011/65/EU Compliant. Hardware, accessories and support options are available for this product line. Offered in both powder coated and zinc plated finishes.
– Welded tubular steel construction
– Load ratings up to 132 lbs/ft
– Cross members welded on 9” intervals
– Standard length of 116.5” (3035mm)
– 1.5”H x .375”W Stringers Tube
– 1.0”H x 0.5”W Cross Members Tube
Part Numbers
| Part Number | Description |
|---|---|
| RXL-1052-BK06 | TELCO Cable Runway, 1.5″ Stringer, 6″ Wide, Black |
| RXL-1052-BK12 | TELCO Cable Runway, 1.5″ Stringer, 12″ Wide, Black |
| RXL-1052-BK18 | TELCO Cable Runway, 1.5″ Stringer, 18″ Wide, Black |
| RXL-1052-BK24 | TELCO Cable Runway, 1.5″ Stringer, 24″ Wide, Black |
See Data Sheet for details.
